Taper Lock Dual Duty Pulleys

Power Transmission Accessories

Taper Lock Dual Duty Pulleys

Classical V / Wedge, Poly-V Timings and HTD Drives

jk-fenner


Taper Lock Dual Duty Pulleys request-quote
  • Dual Duty Grooves to perfectly match Classical V and Space saver wedge belts
  • Taper Lock Pulleys for Poly-V and Timing / HTD Drives
  • Caters to drives up to 200 KW with speed ratio up to 1:7
  • Taper Lock - 'Shelf to Shaft'
  • Over 710 standard sizes
  • Custom-build large pulleys for Higher Power Transmission

We are Authorized Dealer, Distributor, Supplier of JK Fenner Taper Lock Dual Duty Pulleys and our setup is situated in Mumbai, Pune, Maharashtra, India. Fenner Taper-Lock® Dual Duty Pulleys are India's first standard range of metric pulleys. They eliminate reboring and keywaying problems since each pulley need not be finished according to different bore and keyway requirements. With Taper-Lock® Bushes, changes in the diameter and position of pulleys are easily made. These metric pulleys are precision machined and have dual duty grooves to perfectly match Fenner 'PB' Precision Built V-Belts as well as Fenner Space saver Wedge Belts.

All Fenner pulleys are manufactured from superior quality cast iron in over 400 standard sizes. Also additional sizes against special requirements and special material grade can be provided. Fenner metric pulleys conform to IS and ISO groove specifications and standard sizes can transmit upto 250 kW of power at 1440 rpm with speed ratios upto 1:7. The products are made available with excellent pre and post - sales service through our Branches and Distributors across the country.

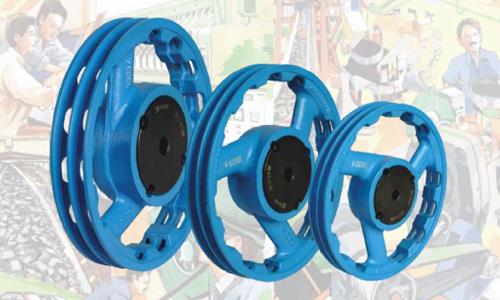

Vcool Pulley


Vcool Pulley request-quote
  • Weight Reduction – Improvement in energy consumption and bearing life.
  • Reduced belt temperature – improvement in belt life
  • Material Strength – High grade SG Iron
